OBS Overlays
Revolutionising streaming effortlessly with Open Broadcast Software (OBS) Overlays AV tool. Give your streams the reactive visual edge to your stream audio.
#MadeInUnity
Example use of the software. Reacting to stereo mix, which is the sound coming from SoundCloud and microphone audio.
SETUP
OBS SETUP

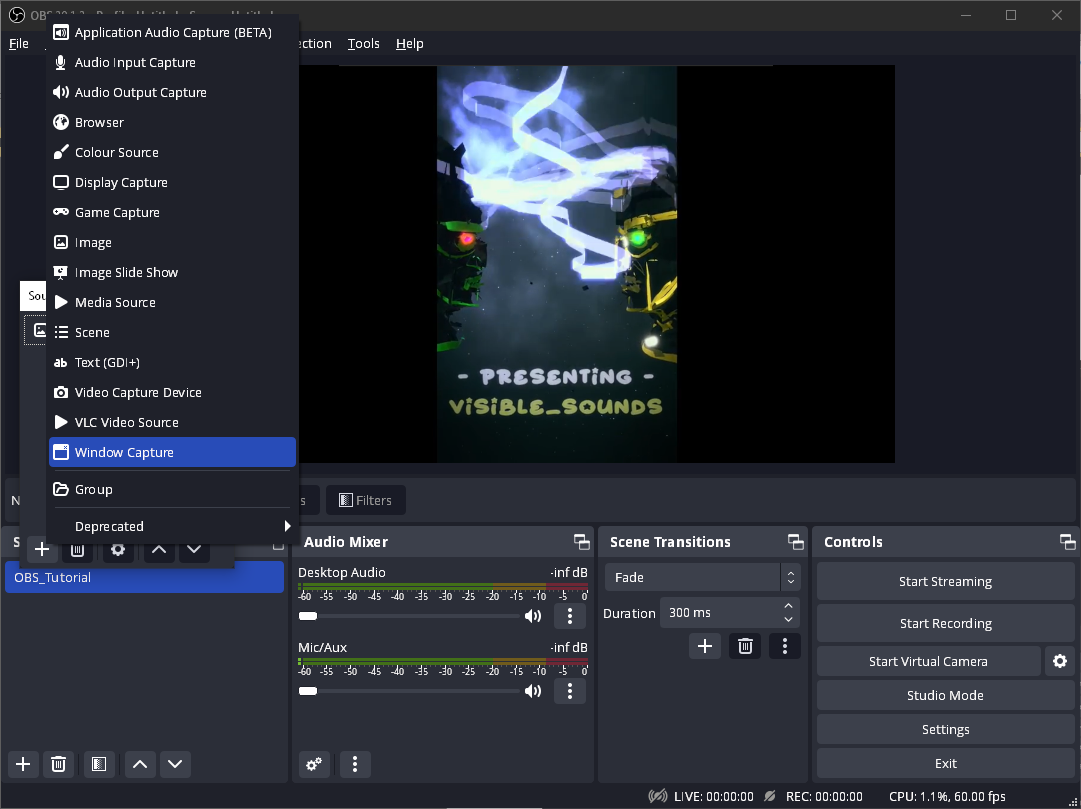

1. Open OBS, Add new Source, Window Capture.

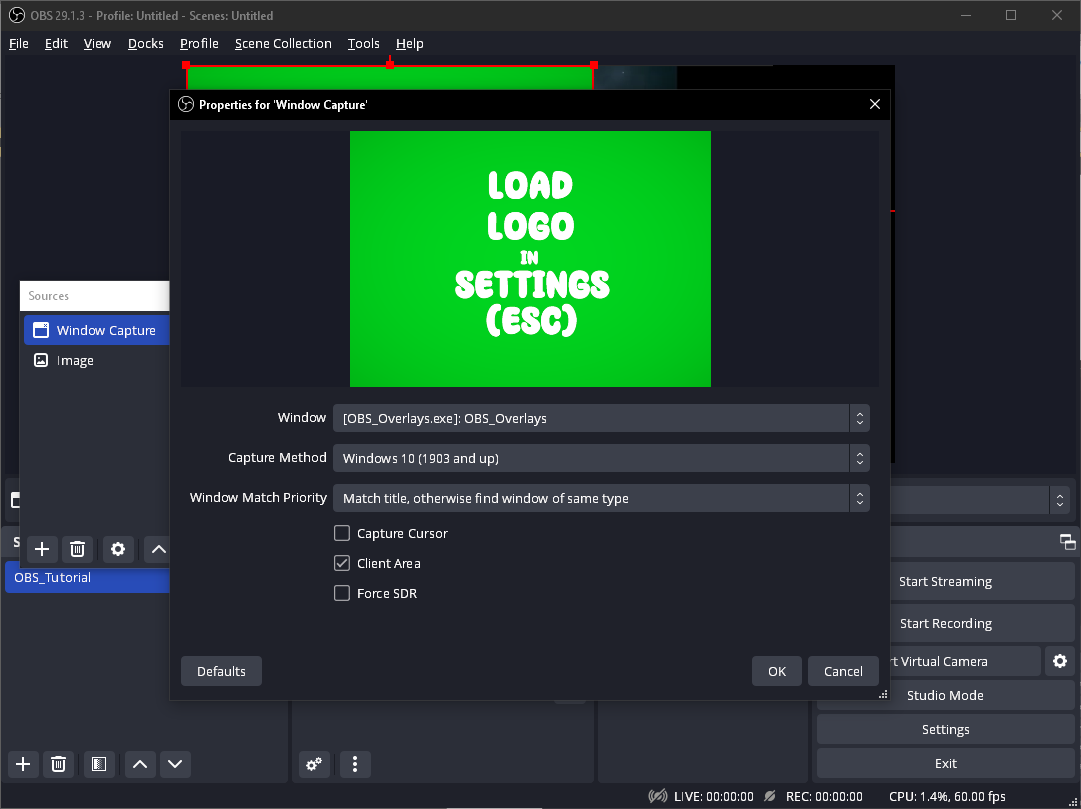

2. Set the window to OBS_Overlays.exe, Set capture method to Windows 10, Uncheck capture cursor. Press Ok.

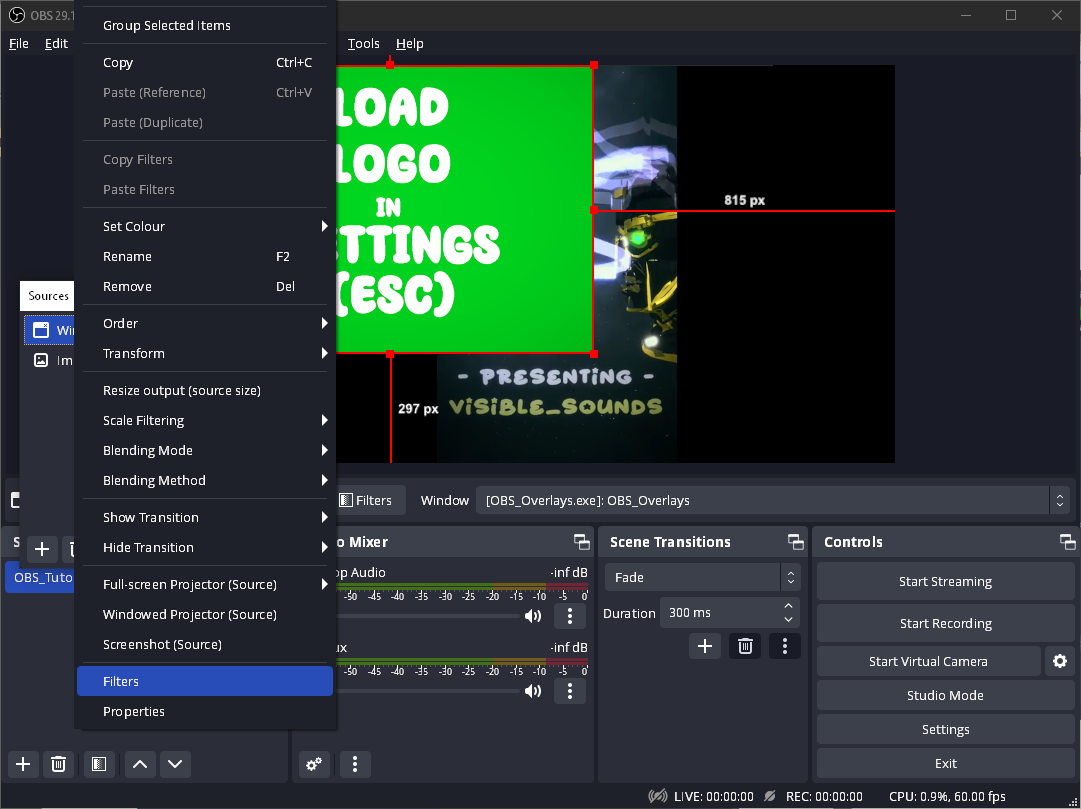

3. Right click the window capture just created in the Sources Window and select Filters.

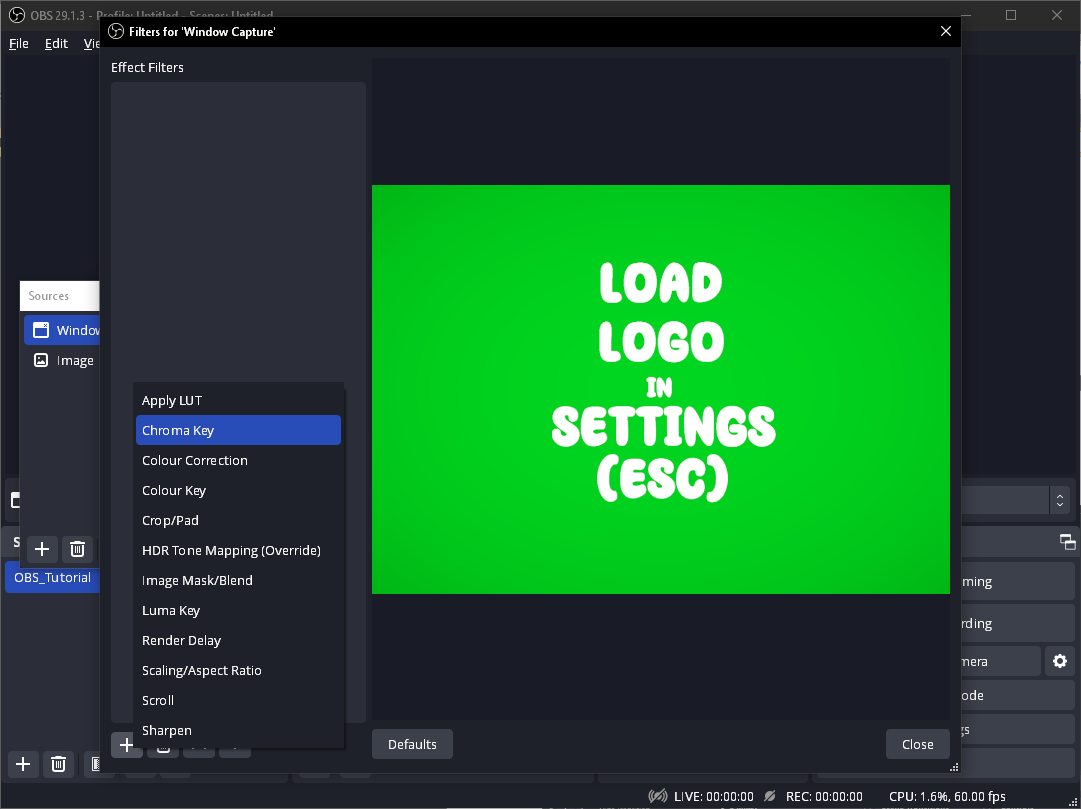

4. Press plus button and select add chroma key.

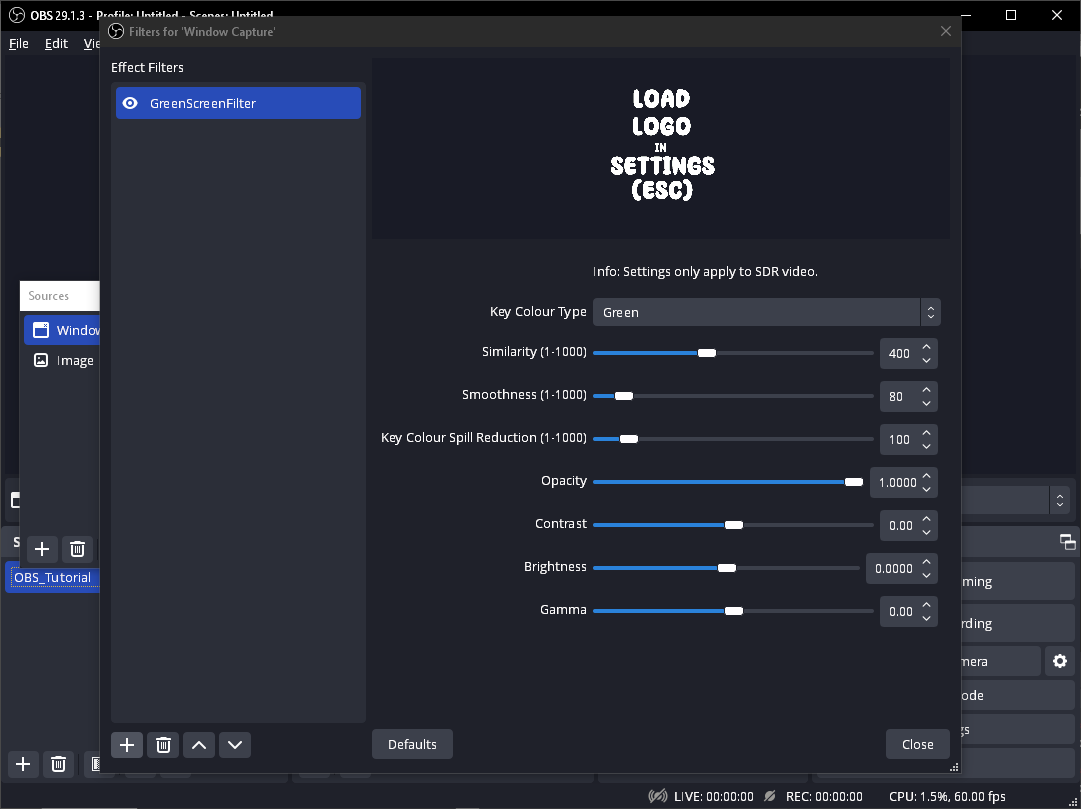

5. Set the colour filter to Green. The default Green Key Colour Type filter the background correctly. These settings may need to be tweeked depending on defaults. Bear in mind that the “Green Screen” colour can also be changed within OBS_Overlays if a different colour is more suitable.
6. As you can see the logo now in your OBS scene and the green background is now transparent.
Opening Customisations

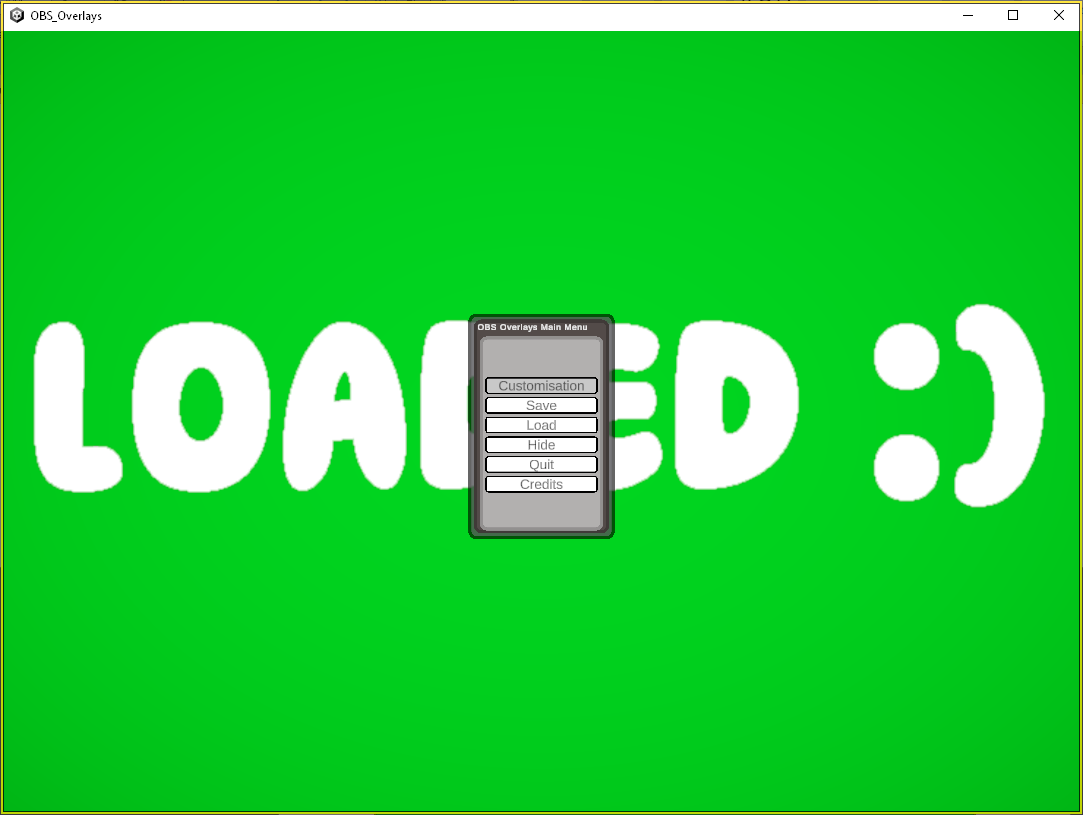

1. Open the program and hit escape on the keyboard to open the Main Menu.

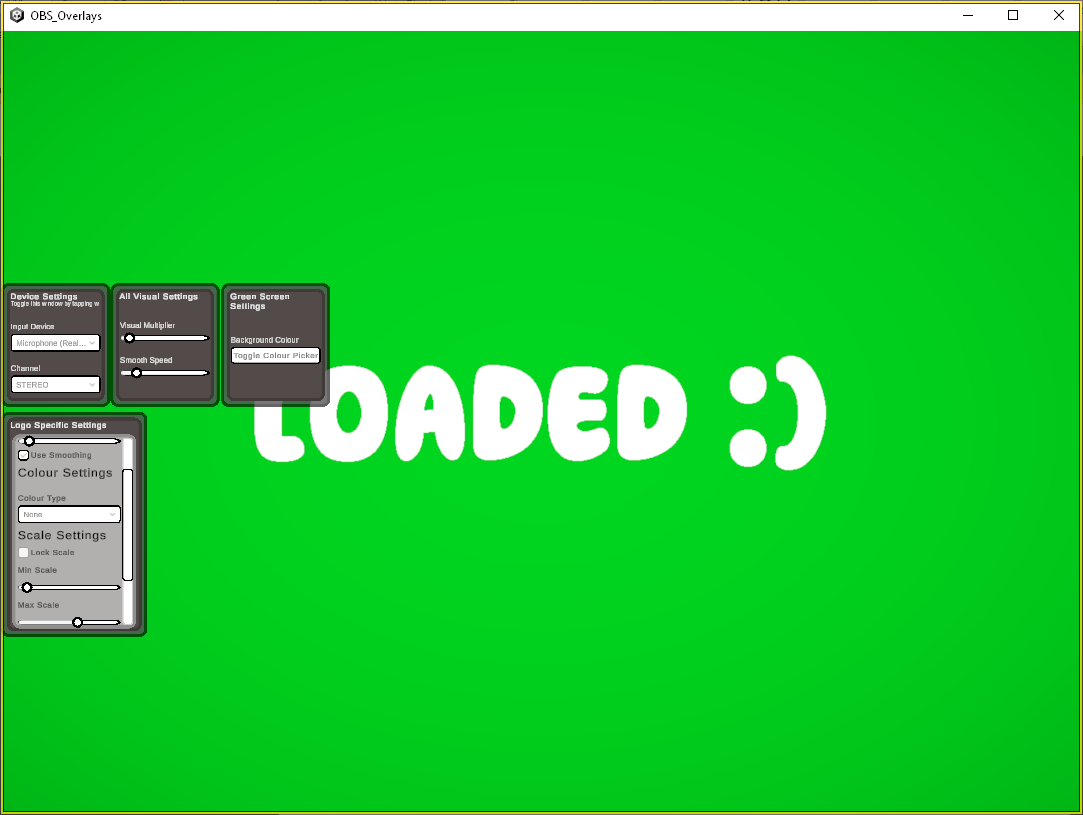

2. Hit Customisations, The Visual Settings, Device Settings, Background and Colour Settings UI will now be visible.
Key Features:
- * Intuitive Interface: Easily customize your visuals with a user-friendly interface.
- * Real-time Interaction: Witness your overlays respond dynamically to live inputs like your selected device (line-input).
- Precision Control: Fine-tune device and channel selection settings for seamless audio integration.
- * Effortless Setup: Save and load your visual settings, including loaded images, for quick and hassle-free configuration.
- * Dynamic Visuals: Experience your image expanding and shrinking based on your selected frequency range.
- * Upgrade your streaming experience today.
- Download OBS Overlays Audio Visual v1.0 now and transform your content into a visually captivating masterpiece!
